Article 3.BMT200-1.TS20 and 3.BMT200-2.TS20

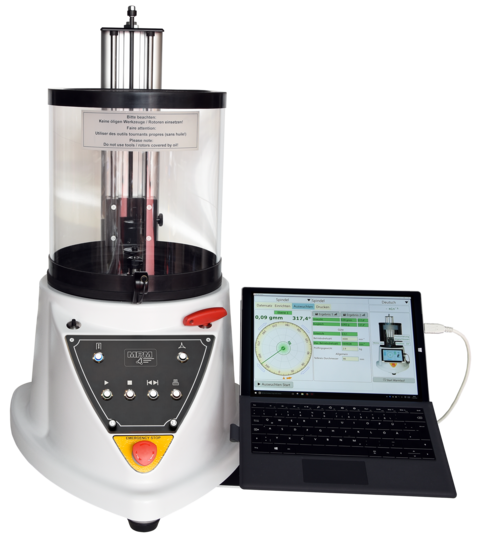

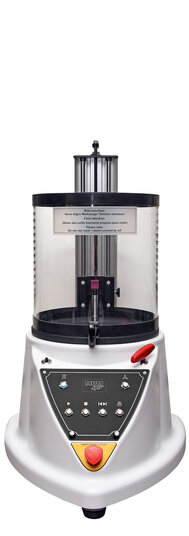

Balancing station BMT200.TS
Especially for small tool holders up to HSK32 / SK30 in the high-speed range
- Highest balancing accuracy at the best price
- Especially for small tool holders up to HSK32 / SK30
- Simplest operation for everyone
- Smallest (<0.1 gram) unbalances detectable
- Highest precision (< 0,1gmm)
- Improved ease of use > 90%.
- For 1-+ 2-plane balancing
- Balancing methods: gram, degree, spread angle, fixed location, radial + axial drilling, milling
- Display: gmm, gram, quality grade
- Workpiece weight up to approx.: 750g
- Workpiece-Ø up to approx. 270mm
- Workpiece length up to approx. 280mm
- Immediately usable
- Test report at the touch of a button
- Weight only approx. 38kg
Catalog-# / Description
Technical details
| Technical data | |
|---|---|
| Power supply | 115/230V, 50-60Hz |
| Power input approx. | 140W |
| Speed range | 500...3000-1 ±1min-1 |
| Operation | Quick Start Keypad |
| Measuring accuracy approx. | <0,5gmm/kg |
| Spindle adapter | Ø 35mm |
| Weight range approx. | 750g |

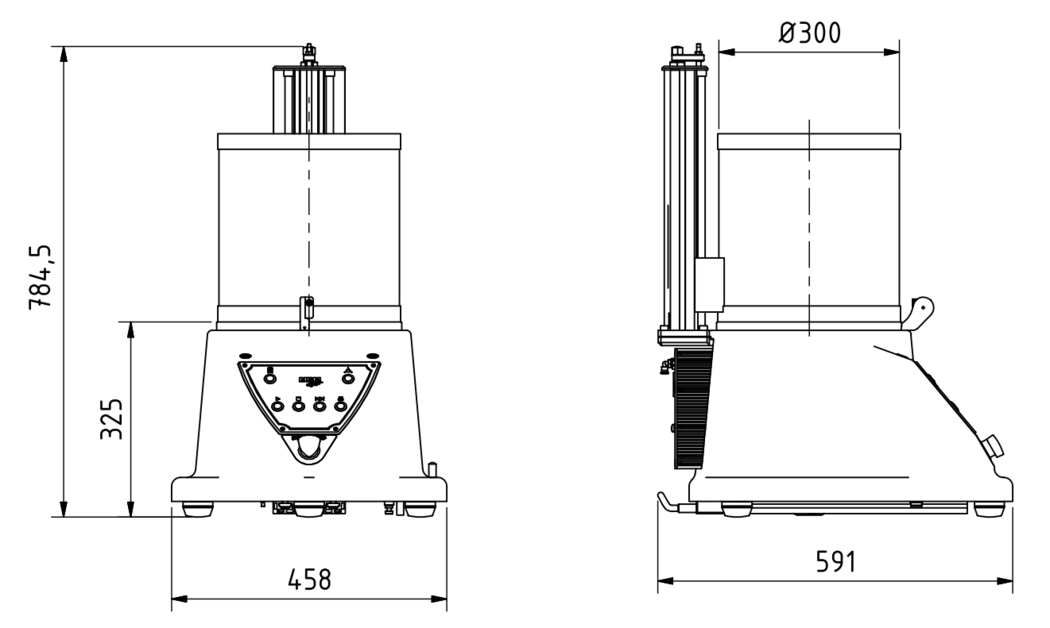

| Dimensions WxHxD approx. | 460x790x590mm |
| Weight approx. | 38kg |
| Temperature (operating): | 0°C...+50°C |
| Temperature (storage): | -10°C...+60°C |
| Humidity: | 20%...50% rel. humidity |
| Operating pressure | min. 6 bar max. 8 bar |

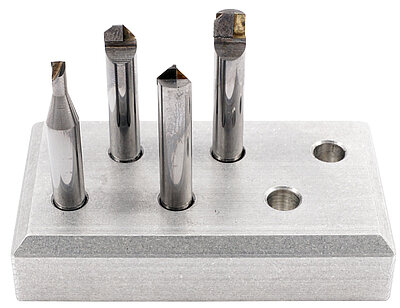

Application example
| Accessory | Description | Article | |
|---|---|---|---|
 | Clamping adapter SK/BT | 3.AD.SK/BTxx | to product |
 | Clamping adapter HSK | 3.AD.HSKxx | to product |
 | Clamping adapter for collets | 3.AD.P020.SZ | to product |
 | CAN-USB Adapter | 3.CAN.USB.TS | to product |
 | Data cable, 9-pin | 3.DKC.B09 | to product |
 | Balancing workstation | 3.BD | to product |
 | Precision pocket scales | 3.CM | to product |
 | Grub screw sets | 3.0.WGS | to product |
 | Vibration sensor for BMT station | 3.PU.M1 | to product |
 | Line laser | 3.LP.04 | to product |
 | Test masses for setup / calibration | 3.TG | to product |
 | Balancing putty | 3.0.WK02 | to product |
