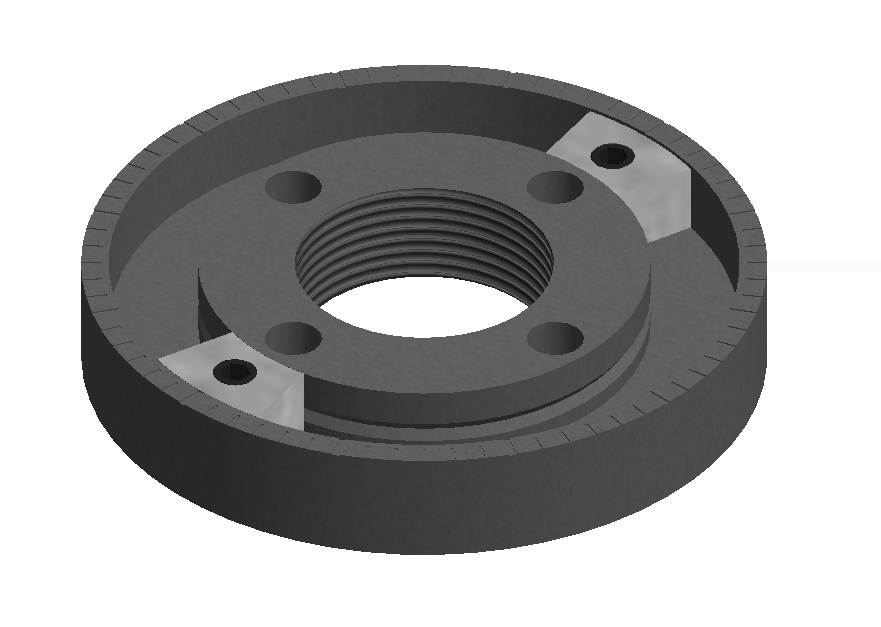

Article 3.WRS01.N1 and 3.WRS01.N2

Balancing rings with axial segments and internal threads

For tools and grinding mandrels

Type 3.WRS01.N1 andtype 3.WRS01.N2

For cup grinding wheels and deeper, poorly accessible clamping situations.

Catalog-# / Description

Catalog-# Order-# Inside-Ø [mm] Outside-Ø [mm] Balancing capacity [gmm] Height [mm]
3.WR01.N1 1021179A M20x1 50 100 8,5
3.WR01.N2 1018293A M20x1,5 50 100 8,5

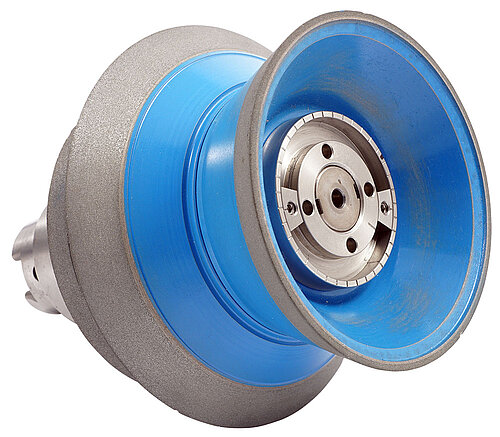

Application example
